High Quality Cross-Linked POF Shrink Film
High-memory, puncture-resistant film wraps nearly anything, including irregular shapes.
10, 12, 15, 19, 25, 30
With crosslink technology, CP-1 is the universal film. This versatile shrink film is designed to be very user friendly. CP-1 offers excellent shrinkage & burn through resistance, strong seals & a wide sealing temperature range, and outstanding puncture & tear resistance. It is suitable for nearly all packaging systems in use today.
• - Runs exceptionally well on all types of L-bar sealers and fin/trim systems (not recommended for high-speed form/fill/seal)
• - Exceptionally tear- and puncture-resistant
• - Shrinks without burn-through at a wide range of temperatures
• - Perfect for older equipment, including tunnels with limited air flow
• - Excellent shrink memory/recovery keeps packages looking great even after handling and abuse
• - High shrink creates tight, dog-ear-free packages
Property | ASTM Test Method | Unit | Thickness | |||
12 | 15 | 19 | 25 | |||
Haze (avg) | D1003 | % | 2.2 | 2.3 | 2.4 | 2.6 |
Gloss at 20° (min) | D2457 | GU | 135 | 130 | 130 | 125 |
COF, Kinetic | D1894 | - | 0.27 | 0.25 | 0.23 | 0.19 |
Shrinkage, 102°C (216°F)* --10 min | D1204 | % (area) | 67 | 66 | 65 | 65 |
Shrink Force | D2838 | g/in @ 100°C | 95 | 105 | 125 | 155 |
Tensile Strength (avg) | D882 | kpsi | 13 | 13 | 13 | 13 |
Elongation (avg) | D882 | % | 120 | 125 | 130 | 135 |
Tear Strength (avg) | D1922 | g | 20 | 25 | 30 | 35 |
(Elmendorf ) | ||||||
WVTR | F1249 | g/100 in2/24 hr | 2.4 | 2.5 | 2.2 | 2 |
Oxygen Transmission | D3985 | cc/100 in2/24 hr | 1000 | 900 | 850 | 650 |
Dimension Specification | |||||||
Width | mm | 100-3400 | |||||

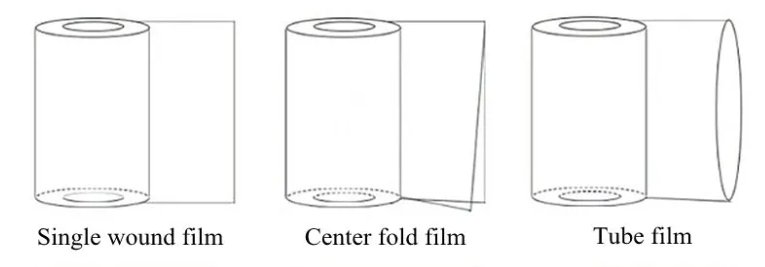

Length /Roll | SW (single wound) | 3200m | 2685m | 2135m | 1600m | 1335m | |
CF (center fold) | 1667m | 1332m | 1067m | 800m | 666m |
