Low Temperature Cross-Linked POF Shrink Film
The Best Lightweight, Low-Shrink force , Low temperature Polyolefin Film in the Business.
11,15, 19
CP-2 is a cross -linked multi-layered soft shrink film with high clarity and excellent seal ability and shrinkage.This outstanding cross-linked shrink film has been developed to shrink quickly at lower temperatures with lower shrink force. CP-2 is an ideal shrink film for shrink wrapping flexible products,especially for soft products like books and magazines, products with odd shapes and some temperature sensitive products.
• - Low temperatures and less energy with high shrinkage.
• - Fast sealing and hot tack.
• - Hot slip properties after shrinkage.
• - Very high shrink performance at low temperatures achieves tightly wrapped, great-looking, uniformly sized packages.
• - Superior clarity and gloss for sparkling product appeal.
Property | ASTM Test Method | Unit | Thickness | ||
11 | 15 | 19 | |||
Haze (avg) | D1003 | % | 2.4 | 2.5 | 2.7 |
Gloss at 20° (min) | D2457 | GU | 130 | 130 | 130 |
COF, Kinetic | D1894 | - | 0.15 | 0.15 | 0.15 |
Shrinkage, 102°C (216°F)* --10 min | D1204 | % (area) | 60 | 60 | 60 |
Shrink Force | D2838 | g/in @ 100°C | 70 | 75 | 85 |
Tensile Strength (avg) | D882 | kpsi | 9 | 10 | 10 |
Elongation (avg) | D882 | % | 125 | 125 | 130 |
Tear Strength (avg) | D1922 | g | 15 | 18 | 25 |
(Elmendorf ) | |||||
WVTR | F1249 | g/100 in2/24 hr | 3.3 | 3.2 | 3 |
Oxygen Transmission | D3985 | cc/100 in2/24 hr | 860 | 850 | 830 |
Dimension Specification | |||||||
Width | mm | 100-3400 | |||||

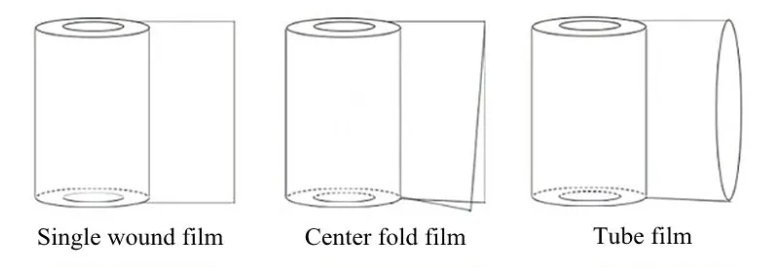

Length /Roll | SW (single wound) | 3200m | 2685m | 2135m | 1600m | 1335m | |
CF (center fold) | 1667m | 1332m | 1067m | 800m | 666m |
